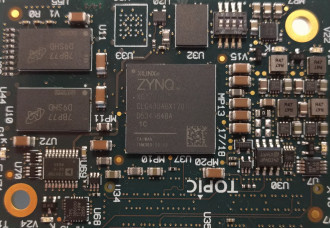

Miami Zynq Lite

The Miami Zynq Lite System on Module (SoM) is an embedded computer board, integrating all key functionalities to deliver a complete computing system, running e.g. Linux or FreeRTOS. The modules are based on Xilinx System on Chip technology, using the Zynq®-7007S/7010/7014S/7020 devices. With their compact footprint and high reliability, they form a low-cost and power-efficient, off-the-shelf solution for medium performance embedded systems.

Key features

  • Xilinx Zynq-7000 based System on Module (7007S/7010/7014S/7020)
  • ARM Cortex-A9 dual or single core 666MHz processor
  • FPGA fabric with DSP and BRAM slices and LUT-based logic
  • Small footprint with 1x high-quality Samtec carrier board connector for power and I/O signals
  • Integrated 16 or 32 bit wide, 512 or 1024 MB DDR memory and 32MB NOR (boot)flash
  • Extensively tested: EMC/EMI, shock, vibration, temperature and humidity

Interesting? Ask for more information

Product description

The Miami Zynq Lite SoM integrates all system components that are required to bring a computer board to life, including memory management, power supply control, debugging facilities and various connectivity options. The Miami SoM provides best-in-class platforms for balancing performance and power. That makes it a perfect solution for applications that require high speed communication interfaces, give the ability to customize system interfaces and perform real-time signal acquisition.  The modules come with a TOPIC supported Linux distribution, including a reference FPGA design. The Miami Zynq Lite SoMs can be evaluated using one of our Development kits, which are powerful prototyping platforms.

Downloads & Datasheets

Miami Zynq Lite datasheet
