Miami

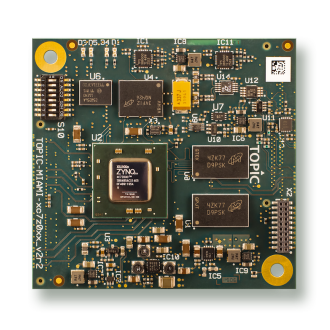

The Miami Zynq System on Module (SoM) is an embedded computer board, integrating all key functionalities to deliver a complete computing system, running e.g. Linux or FreeRTOS. The modules are based on AMD System on Chip technology, using Zynq®-7012S/7015/7030 devices. With their small footprint and high reliability, they form an excellent platform for media centric applications.

read more

Key features

  • AMD Zynq-7000 based System on Module (7012S/7015/7030)
  • ARM Cortex-A9 Dual or single core 800MHz processor
  • FPGA fabric with 4 pairs of gigabit transceivers, DSP and BRAM slices and LUT-based logic
  • Small footprint with 2x high-quality Samtec carrier board connectors for power and I/O signals
  • Integrated 32 bit wide, 1GB DDR memory and 32MB NOR (boot)flash
  • Extensively tested: EMC/EMI, shock, vibration, temperature and humidity
  • Customizable, voltage programmable and industrialized I/O capabilities

Product description

The Miami Zynq SoM integrates all system components that are required to bring a computer board to life, including memory management, power supply control, debugging facilities and various connectivity options. The Miami SoM provides best-in-class platforms for balancing performance and power. It offers a perfect solution for applications requiring gigabit transceivers for PCIe connected NVMe M2 SSD, HDMI/MIPI/Display Port video and QSFP+ connected communication.

The SoM enables you to customize system interfaces and perform real-time signal acquisition. It comes with an TOPIC supported Linux distribution, including a reference FPGA design. The Miami Zynq SoMs can be evaluated using one of our Development kits, which are a powerful prototyping platform.

Typical applications

  • Medium complexity applications
  • Integrated/handheld medical devices and instruments
  • Combined data acquisition/processing/communication/user interface
  • SIL3/SIL4 safe applications for public transport, aerospace and automotive
  • Industrial networked real-time applications
