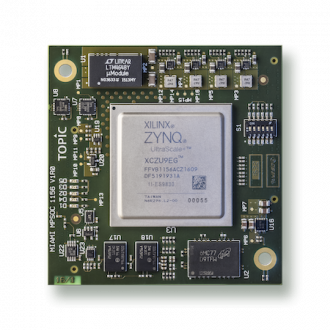

Miami MPSoC

The Miami MPSoC System on Module (SoM) is an embedded computer board, integrating all key functionalities to deliver a complete computing system, running e.g. Linux or FreeRTOS. The modules are based on Xilinx System on Chip 16nm technology, using Zynq Ultrascale+®-ZU6/ZU9/ZU15 (coming soon: ZU2/ZU3/ZU4/ZU5). With their small footprint and high reliability, they form an excellent platform for high bandwidth data processing applications.

Key features

  • Xilinx Zynq Ultrascale+ based System on Module (ZU6/ZU9/ZU15)
  • ARM Cortex-A53 quad or dual core 1.2GHz processor
  • ARM Cortex-R7 dual core lockstep processor
  • ARM Mali 400 GPU
  • FPGA fabric with 4 pairs of gigabit transceivers, DSP and BRAM/URAM slices and LUT-based logic
  • Small footprint with 2x high-quality Samtec carrier board connectors for power and I/O signals
  • Integrated 32 bit wide, 2GB LPDDR4 memory and 64MB QSPI NOR (boot)flash
  • Extensively tested: EMC/EMI, temperature and humidity

Interesting? Ask for more information

Product description

The Miami MPSoC SoM integrates all system components that are required to bring a computer board to life, including memory management, power supply control, debugging facilities and various connectivity options. The Miami SoM provides best-in-class platforms for balancing performance and power. It is optimized for use in the domains of machine learning, autonomous flying and driving, robotics and block chain applications. The SoM enables you to customize system interfaces and perform real-time signal acquisition. It comes with a TOPIC supported Linux distribution, including a reference FPGA design. The Miami MPSoC SoMs can be evaluated using one of our Development kits, forming a powerful prototyping platform.

Downloads & Datasheets

Miami MPSoC Datasheet
