Miami MPSoC Plus

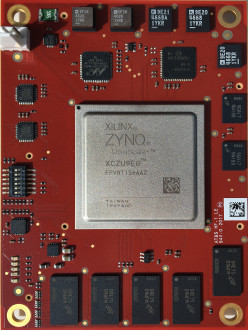

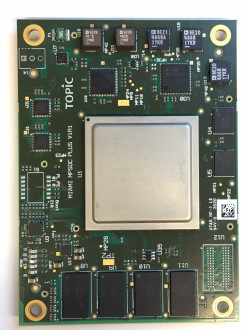

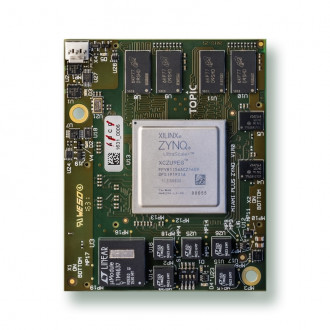

The Miami MPSoC Plus System on Module (SoM) is an embedded computer board, integrating all key functionalities to deliver a complete computing system, running e.g. Linux or FreeRTOS. The modules are based on Xilinx System on Chip technology, using Zynq Ultrascale+®- ZU6/9/15 devices. With their efficient footprint and high reliability, they form an excellent platform for high bandwidth data processing applications.

read more

Key features

  • Xilinx Zynq Ultrascale+ based System on Module (ZU6/ZU9/ZU15)
  • ARM Cortex-A53 quad or dual core 1.2GHz processor
  • ARM Cortex-R7 dual core lockstep processor
  • ARM Mali 400 GPU
  • FPGA fabric with 16 pairs of gigabit transceivers, DSP and BRAM/URAM slices and LUT-based logic
  • 3 pairs of gigabit transceivers for USB3, ethernet, Display port and PCIe the CPU
  • Integrated 72-bit wide, 4GB DDR4 memory and 64MB QSPI NOR (boot)flash
  • Extensively tested: EMC/EMI, temperature and humidity
  • Small footprint with 3x high-quality Samtec carrier board connectors for power and I/O signals and up to 16Gbit/sec differential signal links

Interesting? Ask for more information

Product description

The Miami MPSoC Plus SoM integrates all system components that are required to bring a computer board to life, including memory management, power supply control, debugging facilities and various connectivity options. The Miami SoM provides best-in-class platforms for balancing performance and power. The platform is suitable for phased array ultrasound and radar applications, which require effective processing power, high speed communication and software defined radio. The SoM enables you to customize system interfaces and perform real-time signal acquisition. It comes with a TOPIC supported Linux distribution, including a reference FPGA design. The Miami MPSoC Plus SoMs can be evaluated using our Florida development kit, forming a powerful prototyping platform.

Florida Plus development kit
The Florida Plus is a carrier board, especially designed for the Miami MPSOC Plus SOM. With a Florida carrier board, you can evaluate the capabilities of the Xilinx Zynq® based Miami System-on-Modules (SoM) in combination with a rich pool of peripherals. The setup helps you to kick-start your target application development giving access to the complete feature set of the Zynq Ultrascale Plus processor in combination with the provided high-quality Linux board support package. The Florida Plus development kit is a combination of a Miami MPSOC Plus SOM, the Florida Plus carrier board, power supply and other materials to kick-start your development. The development kit is delivered with software and FPGA reference designs, schematics and PCB layout as an inspiration for developing your own carrier board. TOPIC also offers as a development service the customization of the Florida Plus carrier board to your specific needs, including updating the embedded Linux BSP with specific driver support. For technical details, download the Florida Plus Product guide.

Pricing of the Miami MPSoC Plus SoM starts from 1,500 USD single unit price and for the Miami MPSoC Plus development kit from 2,750 USD. For more information and volume discounts please contact us via the contact form below or sales@topicproducts.com.

Downloads & Datasheets

Leaflet Miami MPSoC Plus

florida-plus-product-guide-v1r1.pdf

miami-mpsoc-plus-product-guide-v1r1.pdf
